MCKARE

Non-contact Vital Signs Monitoring Radar Sensor

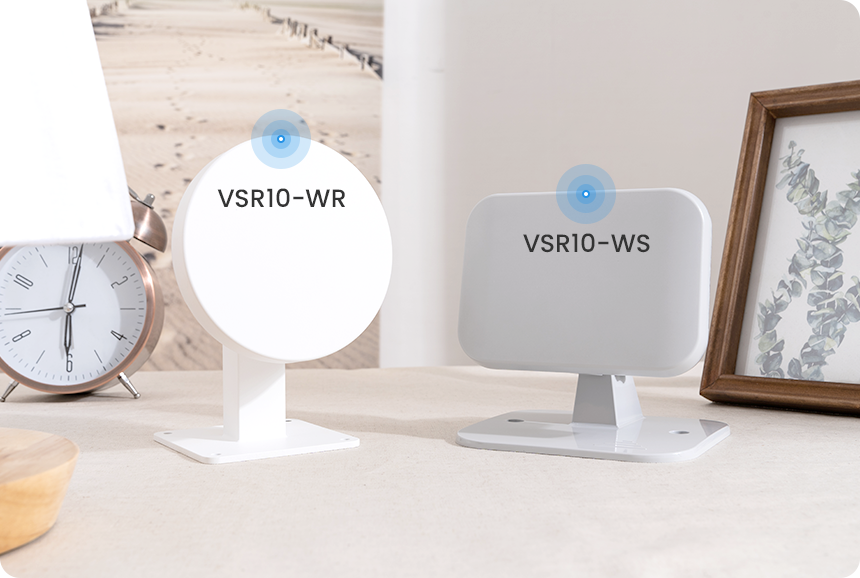

VSR10-WR (105x130x90mm, Weight 165g)

VSR10-WS (120x115x110mm, Weight 145g)

Wall / ceiling / furniture installation radar sensor

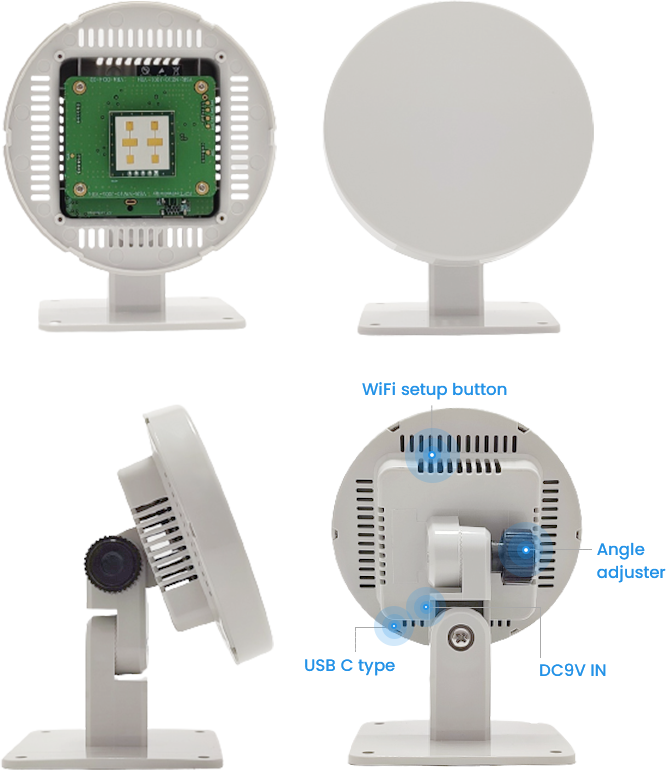

  • 01 VSR10-WR: Round case
  • 02 VSR10-WS: Square case
  • Monitor the user's heart rate and respiratory rate at a
    distance up to 2m and 5m, respectively.

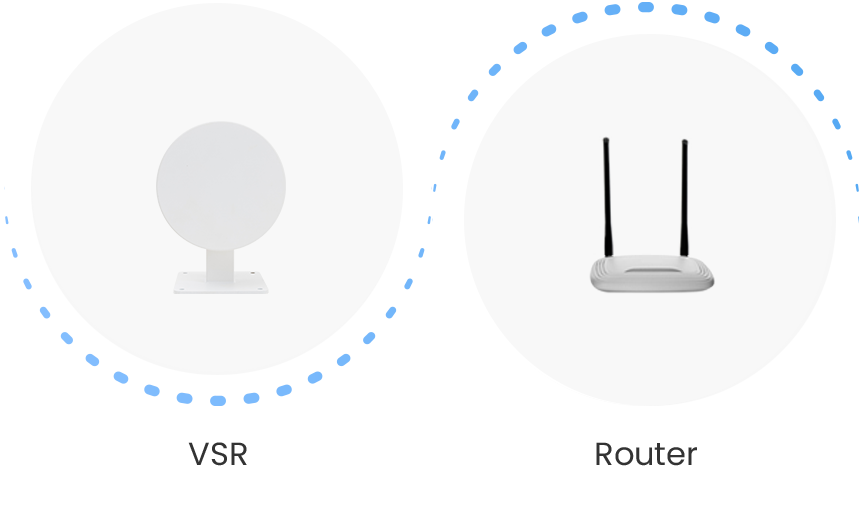

  • Connected to gateway using IoT network solutions such
    as WiFi and Zigbee

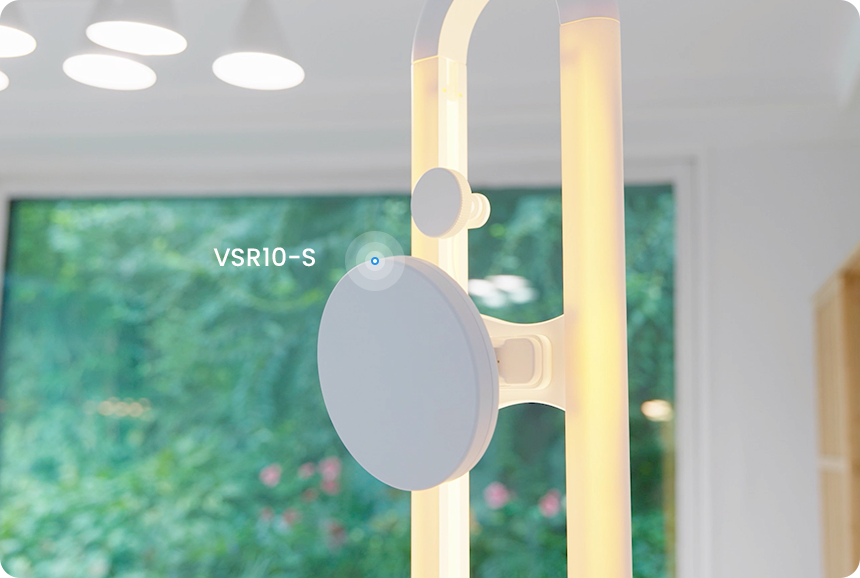

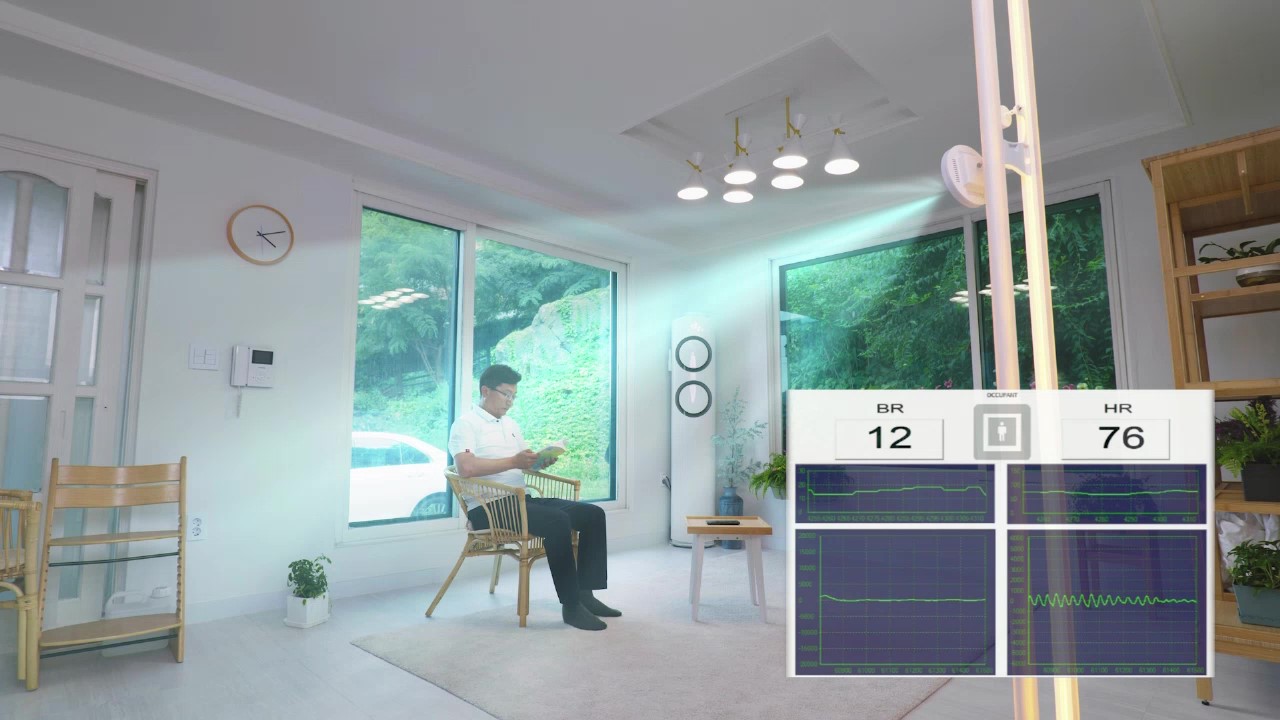

VSR10-S (250x1760x250mm)

Stand-type lighting incorporated with VSR-WR
and it is suitable to be placed in the living room,
kitchen, and rooms.

  • Radar Sensor height adjustable
  • Monitor user's vital signs
  • Light turns on automatically when movement is sensed

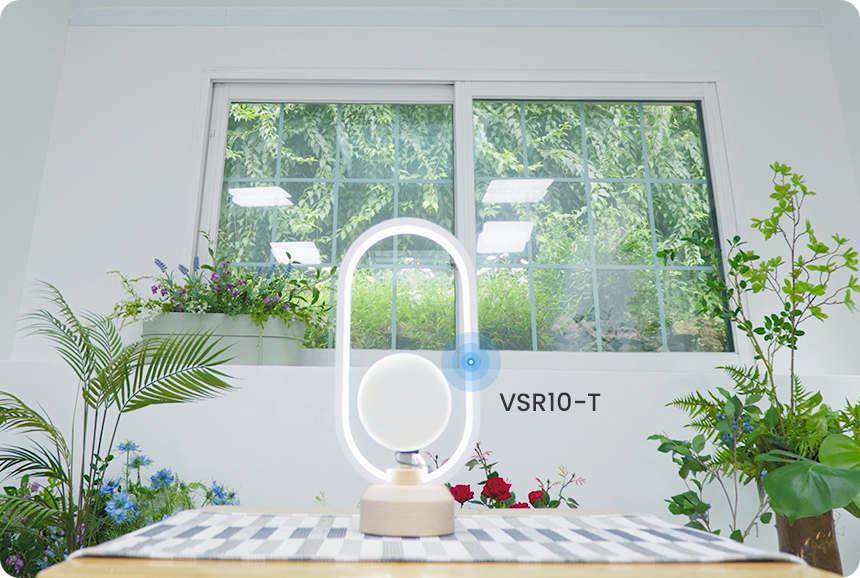

VSR10-T (160x340x95mm, Weight: 450g)

Table lamp incorporated with VSR-WR and does
not require installation on walls / ceiling.

  • Monitor the user's vital signs
  • Suitable to be placed on bedside table
  • Light turns on automatically and it can prevent from falling out of bed

Key Features

  • Heart Rate

  • Respiratory
    Rate

  • Snoring

  • Sleep
    Apnea

  • Fall
    Detection

  • Occupancy
    Status

  • Emergency
    Alarm

  • Activity

  • Quick to install
    & setup

  • High quality &
    compliance

  • ContinuousM
    Monitoring

  • Clinical test done:
    95% accuracy

Protecting your privacy is our
number one priority

  • No camera or recorder embedded
  • Users non-identifiable
  • Require user’s prior consent
  • Single-person monitoring
  • *Two radar sensors are used when two users share the same bed

Make yourself a space where you
can rest and be assured

  • Multiple devices can be installed indoor within Wifi connection
  • Continuous health monitoring is possible anytime, anywhere
  • The 24GHz frequency radar has completed the certification of
    harmlessness to the human body by an accredited institution
    (INCIRP) and FCC human protection standards.

Aimed to deliver
efficient care solutions

  • Our solutions are designed to increase efficiency and to improve
    personalization of care in all environments
  • Smart care management solution for healthcare providers
  • Improve the efficiency of care, allowing better allocation of
    healthcare resources

Stay connected while
physically apart

  • Helpful elderly monitoring device for senior safety and
    emergency alert

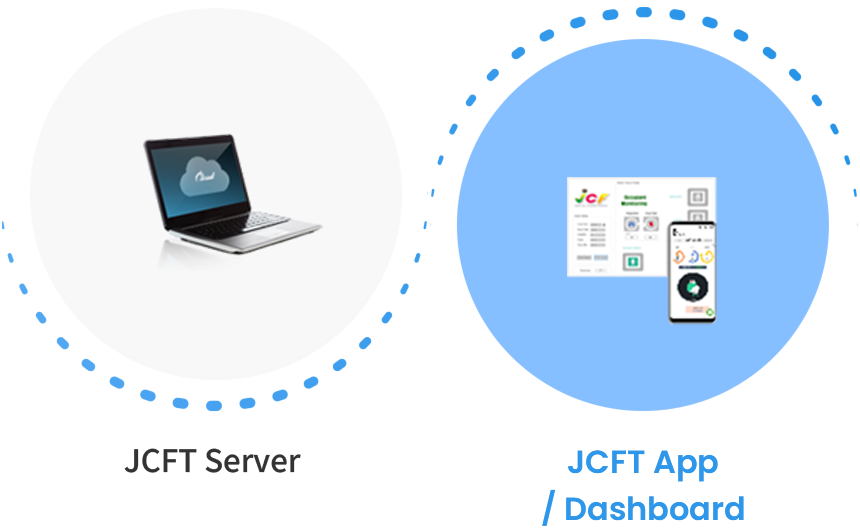

  • Family members are able to connect to the device and make
    a real-time monitoring possible

design optimization

Sensor Technology Micro Doppler Processing
Coverage Angle H: 80º, V: 35º
Supply Power DC 9V
Interface Wi-Fi, Zigbee (USB to UART / option)
Frequency 24GHz (24.050 ~ 24.250)
Coverage Distance 1 ~ 5m(Heart: 2m, Respiratory:
5m,Movement: 7m)
Power Consumption 300mA
  • Application of technology to minimize effects of reflection and radar interference by the equipment.
  • Reduces the user’s resistance and applies a design that can fit various indoor installations.
