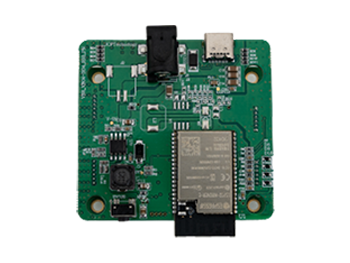

Non-contact Vital Signs Monitoring Radar Sensor

McKare is an IoT based non-contact healthcare device that replaces
inconveniences and troublesome points of existing wearable healthcare devices.

Specification

Sensor Technology Micro Doppler Processing
Frequency 24GHz (24.050 ~ 24.250)
Coverage Angle H: 80º, V: 35º
Coverage Distance 1 ~ 5m(Heart: 2m, Respiratory: 5m, Movement: 7m)
Supply Power DC 9V
Power Consumption 300mA
Interface Wi-Fi, Zigbee (USB to UART / option)

Key Features

  • Heart Rate Heart Rate
  • Respiratory Rate Respiratory
    Rate
  • Snoring Snoring
  • Sleep Apnea Sleep
    Apnea
  • Fall Detection Fall
    Detection
  • Occupancy Status Occupancy
    Status
  • Emergency Alarm Emergency
    Alarm
  • Activity Activity
  • Quick to install& setup Quick to install
    & setup
  • High quality&compliance High quality&
    compliance
  • Continuous Monitoring Continuous Monitoring
  • Clinical test done:95% accuracy Clinical test done:
    95% accuracy
banner01
banner01

Continuous Health Monitoring

  • VSR model can be installed anywhere indoor, within WiFi/Zigbee connection
  • Multiple vital signs measurement methods
  • Measure changes in heart/breath count and body movement, providing customized output data and health solutions

Privacy Protection

  • Do not use camera or recorder
  • Non-identifying feature
  • Require user's prior consent
  • Self health management system
  • For single-person monitoring

* Two radar sensors are used when two users share the same bed

Structural design and design
optimization of senosrs

01

Application of technology to minimize radar
signal distortion caused by the equipment.

Minimize the effects of refiection and radar
interference by instruments.

02

It reduces the user's resistance
and applies a design that can fit various
indoor installations.

It can be used as a user-customized system data collection radar sensor through combining with
various communication equipment and additional software configuration.

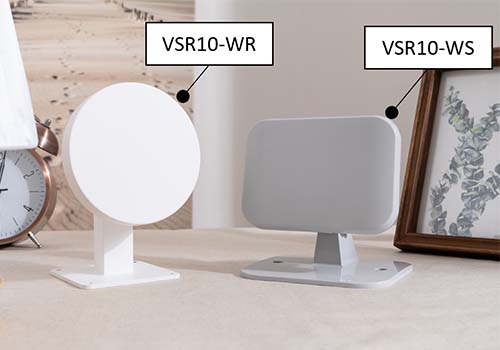

VSR10-WR

(110x140x80mm, Weight: 130g )

VSR10-WS

(120x115x110mm, Weight: 145g)

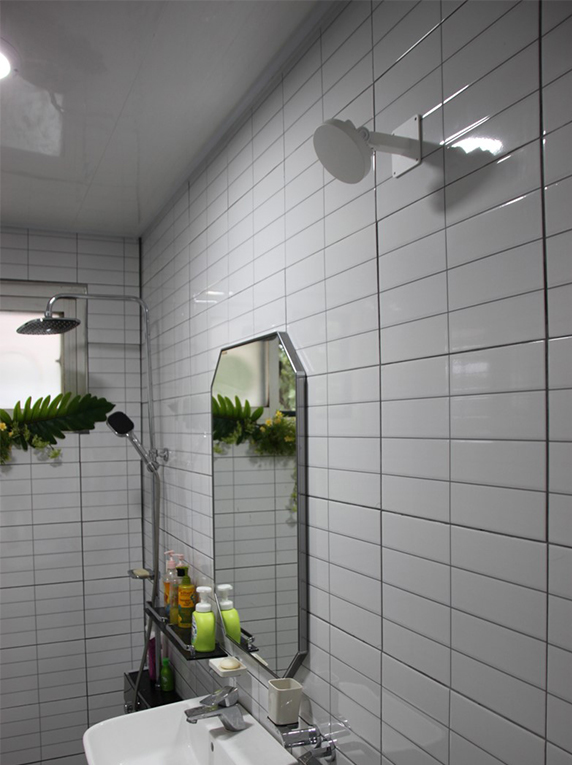

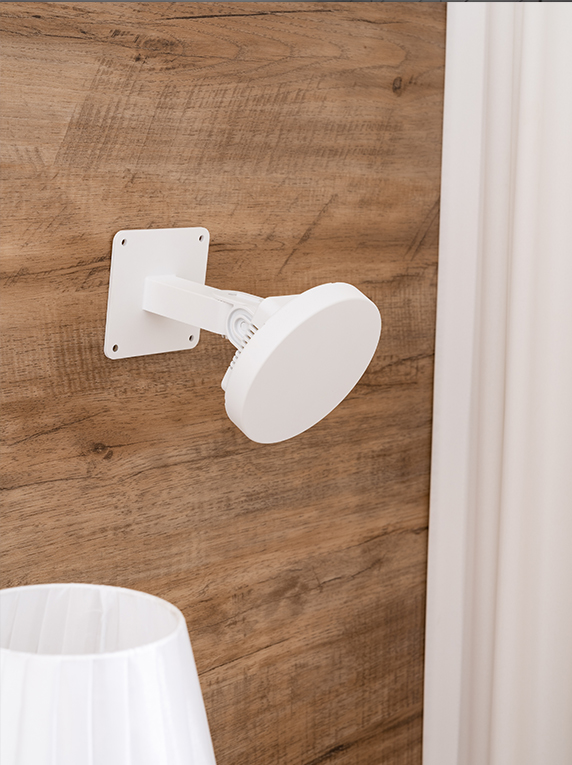

    Wall / ceiling / furniture installation radar sensor
  • 1) VSR10-WR: Round case
  • 2) VSR10-WS: Square case
  • Monitor the user's heart rate and respiratory rate at a distance up to 2m and 5m, respectively.
  • Connected to gateway using IoT network solutions such as WiFi and Zigbee

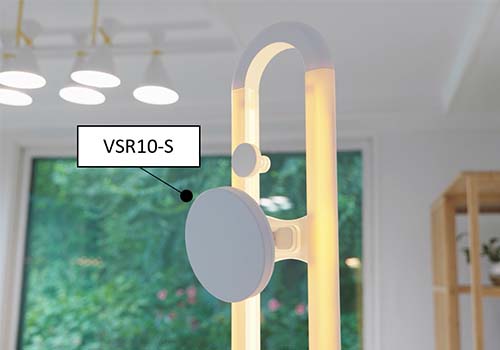

VSR10-S

(250x1760x250mm)

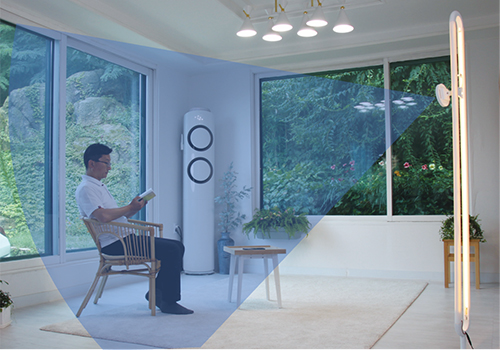

    Stand-type lighting incorporated with VSR-WR and it is suitable to be placed in the living room, kitchen, and rooms.
  • Radar Sensor height adjustable
  • Monitor user's vital signs
  • Light turns on automatically when movement is sensed

VSR10-T

(160x340x95mm, Weight: 450g)

    Table lamp incorporated with VSR-WR and does not require installation on walls / ceiling.
  • Monitor user's vital signs
  • Suitable to be placed on bedside table
  • Light turns on automatically and it can prevent from falling out of bed
